Transfer data using TCP client

Transfer data using TCP client#

Note

Only applicable to Barcode Readers that support Wi-Fi transmission, such as DS2800.

Quick configuration#

Static command instructions

If the interactive HTML tool is unavailable, replace the placeholders as described in this section and verify the command.

AT+SOCK=TCPC,<port>,<host>,<port>;AT+RAP=<ssid>[,<wifi-password>]

Note

When you use third-party software to build a TCP server, you can use this tool to generate configuration code.

Demo software#

Connect#

  1. Download the demo software and extract it to a local directory.

  2. Open the demo software, enter the Wi‑Fi information and TCP server information that the Barcode Reader needs to connect to, and then use the Barcode Reader to scan the QR code below.

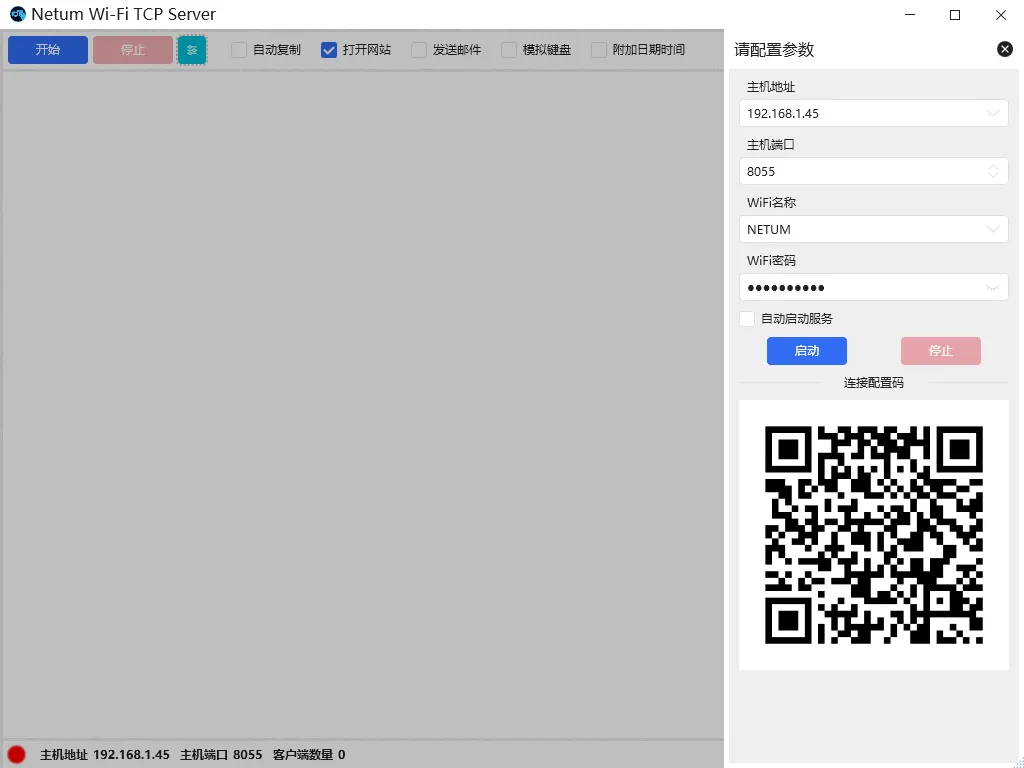

../../_shared/_images/wireless-wifi/wifi-tcpserver1.png

TCP server configuration QR code example#

  1. Click Start Service, or start the TCP service programmatically.

  2. Wait for the Barcode Reader to actively connect to the TCP service provided by the software.

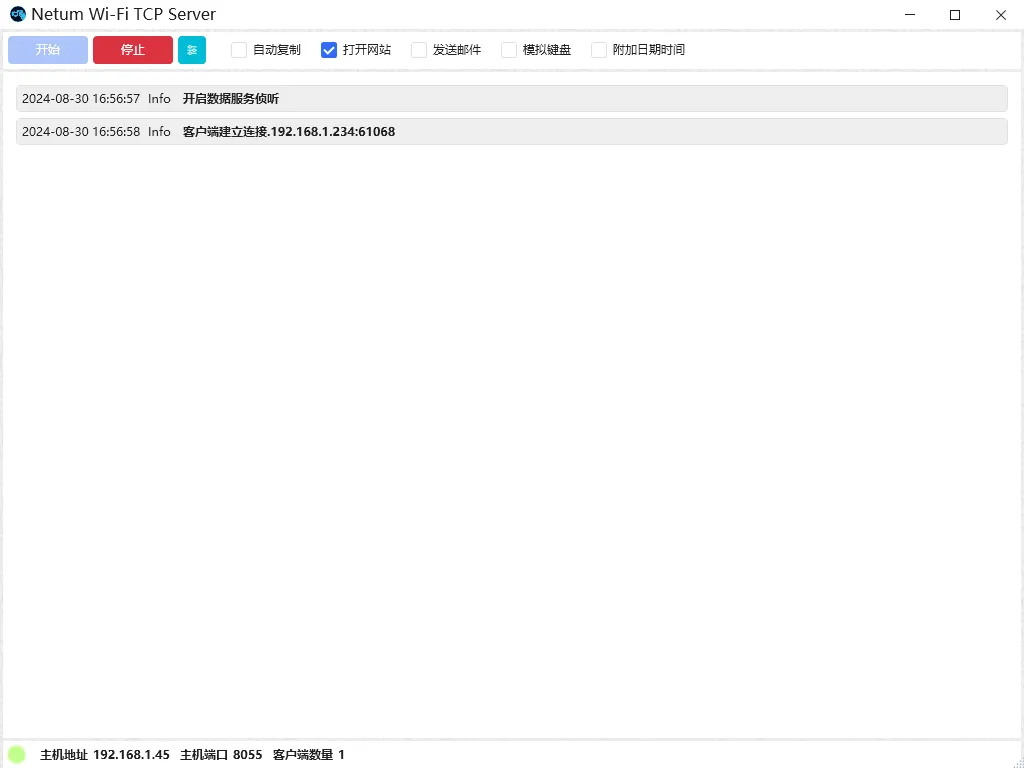

../../_shared/_images/wireless-wifi/wifi-tcpserver2.png

TCP server running example#

Note

  • Host address: The IP address of the computer where the TCP service is located.

  • Host port: The port number that the TCP service listens on.
